When engineers, brand managers, or pack buyers specify a 5‑liter motor oil jerry can, one of the most critical—but often overlooked—details is the screw cap size. The cap determines not only how reliably the container seals against leaks, but also affects fill line efficiency, shelf life, tamper evidence, and the customer’s pouring experience.
This guide explains the most commonly used screw cap sizes for 5L motor oil jerry cans, how neck finishes influence compatibility, and what performance factors should be considered when choosing screw caps.

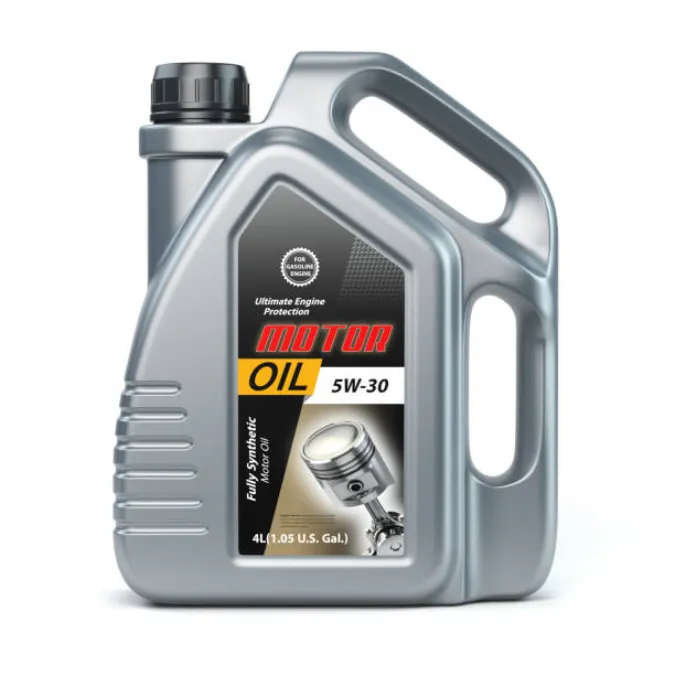

Why 5L Motor Oil Jerry Cans Need Robust Screw Caps
5L motor oil jerry cans are widely used in automotive aftermarket retail, workshops, service stations, and industrial environments. Compared with 1L or 4L motor oil jerry cans, 5L containers are heavier, frequently stacked, and often transported over long distances.
Because of this, screw caps for 5L engine oil containers must meet higher requirements:
- Increased sealing reliability to prevent leaks under weight and pressure
- Resistance to vibration and temperature changes during transport
- Higher torque tolerance to ensure consistent application on filling lines
- Chemical compatibility with engine oils and additive packages
A standard light-duty cap that works for small bottles may fail when applied to a 5L jerry can. This is why cap size, structure, and liner selection are especially important for this format.
Common Neck Sizes and Finishes for 5L Jerry Cans
Standard neck diameters like 38mm, 42mm, and 50mm, combined with chemically resistant PE or PP materials and induction seals, are the foundation for secure, leak-proof 5L jerry can packaging.
Before discussing screw cap sizes, it is essential to understand neck size, as the cap must be designed to match the container’s neck finish precisely.
Most 5L motor oil jerry cans use wide-mouth threaded necks to allow faster pouring and easier handling. Common neck size ranges include:
- 45 mm neck finishes
- 50 mm neck finishes
- 60 mm neck finishes
- 63 mm neck finishes (common in European markets)
In addition to diameter, neck finishes differ in:
- Thread type (continuous thread or buttress thread)
- Thread pitch and depth
- Neck height and sealing surface design
Even two jerry cans labeled as “60mm” may not be interchangeable if the thread profile or neck height differs. This is why neck drawings or physical samples are always recommended before cap selection.

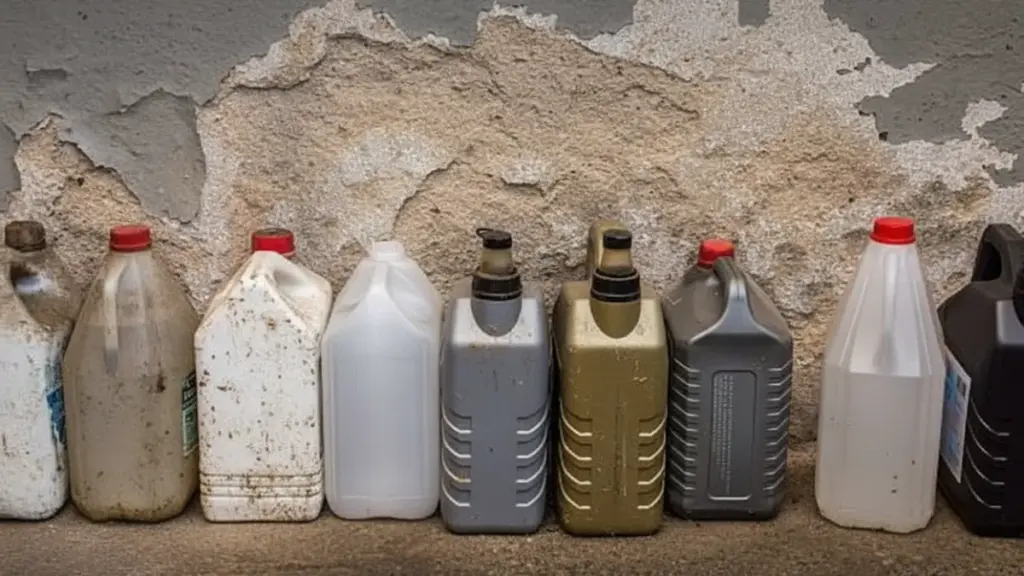

Screw Cap Sizes Typically Used on 5L Oil Containers
While smaller bottles often use 28 mm or 33 mm closures, the 5L size demands something larger for flow and handling reasons. Typical screw cap sizes are:
- 38 mm caps – The industry standard for mid‑viscosity motor oils. They strike the right balance between ease of pouring and controlled flow.
- 45 mm caps – Chosen for high‑viscosity oils and for co‑packers using rapid‑fill lines with large nozzles.
- 50 mm caps – Designed for wide‑neck HDPE cans that also accept dispenser attachments or add‑on spouts.
- 60 mm caps – Less common but used in bulk or specialty applications where tools aid opening.
Cap design may vary—flat‑top, ribbed skirt for grip, or tethered for reuse in refill systems. Increasingly, sustainability and circular‑economy policies push packaging engineers toward monomaterial PP or HDPE caps to simplify recycling.
High-Performance Closures That Guarantee Zero Leaks
How to Choose the Screw Caps for 5L Motor Oil Jerry Cans
Selecting the right screw caps for 5L motor oil jerry cans involves more than choosing a matching diameter. Multiple technical and practical factors must be evaluated to ensure sealing reliability, transport safety, and ease of use throughout the product’s lifecycle.
Neck Size and Thread Compatibility
The first consideration is the neck size and thread finish of the jerry can. Screw caps must precisely match the container’s neck diameter, thread type, pitch, and height. Even minor mismatches can lead to cross-threading, poor sealing, or leakage under pressure.
Cap Material and Structural Strength
For 5L motor oil containers, HDPE screw caps are widely used due to their chemical resistance and mechanical durability. Heavy-duty designs with reinforced top panels and thicker thread walls help maintain performance under stacking loads and repeated opening and closing.
Liner Selection and Sealing Performance
The liner plays a critical role in leak prevention. PE foam liners are suitable for standard applications, while induction foil or foil-foam liners offer enhanced sealing and tamper evidence, especially for export or long-distance transportation. Common liner options include:
- EPE (Expanded Polyethylene) – Lightweight, compressible foam giving an excellent mechanical seal for most mineral oils.
- F217 (Three‑layer PE/foam/PE) – Superior chemical resistance, maintaining torque retention under temperature swings.
- Induction heat seal (Foil + Liner) – Fuses an aluminum membrane to the neck for tamper evidence and zero‑leak shipping.
- Viton or nitrile rubber gaskets – Used for aggressive synthetic lubricants or solvents.
Mechanical and Handling Requirements
Screw caps should withstand higher application torque, drop impact, and stack pressure associated with 5L packs. At the same time, features such as grip design and opening force should be optimized to ensure safe and convenient handling for end users.
Screw Cap Size and Spec Reference Table for 5L Motor Oil Jerry Cans
| Neck Finish | Typical Closure OD | Thread Turns | Recommended Torque (N·m) | Common Liner Options | Main Usage |
|---|---|---|---|---|---|
| 38‑400 | 38 mm | 1.5 | 1.7–2.8 | EPE, F217 | Standard 5L mineral oil |
| 45‑400 | 45 mm | 1.75 | 2.0–3.0 | EPE, Foil seal | Viscous or synthetic blends |
| 50‑410 | 50 mm | 1.5 | 2.8–3.5 | Foil + liner | Premium or bulk oil cans |
| 60‑400 | 60 mm | 1.5 | 3.0–4.0 | Nitrile, EPE | Industrial lubricants |
Conclusion
Selecting the right screw cap for 5L motor oil jerry cans is critical for supply chain performance. A correctly specified cap, liner, and application torque ensures containers withstand drop and stack tests without leaking. This protects the product, prevents costly cleanups, and maintains brand integrity from the warehouse to the end user.
Use the reference table to audit your current 5L packaging and identify any potential vulnerabilities in your cap specifications. If you need assistance selecting a closure that meets rigorous performance standards, our packaging specialists can provide technical data or samples for testing.
Frequently Asked Questions
What size caps are used for 5L oil jerry cans?
Common cap sizes for 5L oil containers are 38mm, 42mm, and 50mm. These are typically screw-on caps manufactured from high-quality plastics like PE (polyethylene) or PP (polypropylene) to ensure chemical resistance and provide a secure, tamper-evident closure.
How do I stop 5L oil containers leaking under stacking?
To prevent leaks from stacking and handling, use robust screw caps that feature induction sealing technology. An aluminum foil induction seal liner creates a tight, leak-proof closure that provides an essential layer of protection against spillage during transport and storage.
Do 5L jerry cans need different caps than 4L?
The provided research focuses specifically on 5L containers, for which robust screw caps (e.g., 38mm, 42mm, 50mm) with induction seals are recommended. While the research does not compare them to 4L cans, the cap choice always depends on the container’s specific neck finish and thread design, not just its volume.
What torque and liner do 5L caps require?
For 5L motor oil containers, an aluminum foil induction seal liner is recommended to ensure a leak-proof closure and protect contents from contamination. The provided research does not specify application torque values, as these typically vary based on the specific cap and container materials.
Can I use vented caps on 5L motor oil cans?
The research material emphasizes the importance of robust, tightly sealed screw caps with induction liners to protect motor oil from external contaminants like moisture and dust. It does not mention the use of vented caps, as the primary goal is a hermetic seal to maintain product integrity.
How do I improve pouring from 5L containers?
The provided research content is focused exclusively on the technical requirements for sealing and capping 5L containers to prevent leaks and contamination. It does not contain information regarding container features or accessories designed to improve pouring.
